Guanhang manual pallet truck is a kind of logistics handling equipment for handling goods.

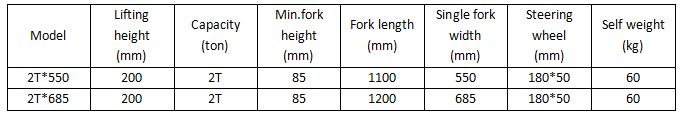

There are two types of transporters: 550 and 685. See the above figure for specific dimensions. Its wheels are also divided into two types, one is nylon wheel and the other is rubber wheel. Nylon wheels are suitable for cement floors, while rubber wheels are suitable for marble, paint and epoxy floors.

There are two kinds of truck materials: black steel and white steel. In terms of price, the price of white steel is more expensive than black steel, and the quality is better.

Difference between white steel and black steel: the oil pump of white steel is an integrated pump, which is cast at one time. The black steel pump is a split pump, which is split welded. The advantage of the integrated pump is that it saves labor when rising under load. In addition, the valve core of the integrated pump is an imported integrated valve core, and the black steel pump is a split valve core. The integrated valve core has long service life, few faults and saves time and labor.

● the manual booster truck adopts a unique transmission system, which is free of driving wear and maintenance. The accurate micro motion control ensures the safe handling of large goods and solves the problem of difficult starting of manual handling of large goods.

● the manual power assisted carrier is raised manually and hydraulically, with firm frame design and large bearing capacity.

● it adopts unique limit walking and braking functions to ensure safe and reliable handling of large goods.

● with superior performance and compact structure, this model is an ideal tool for short-distance handling.

Scope of application: it is widely used for short-range handling in manufacturing enterprises, commercial logistics industry, large supermarkets, stations, airports, logistics centers, freight stations or distribution.
